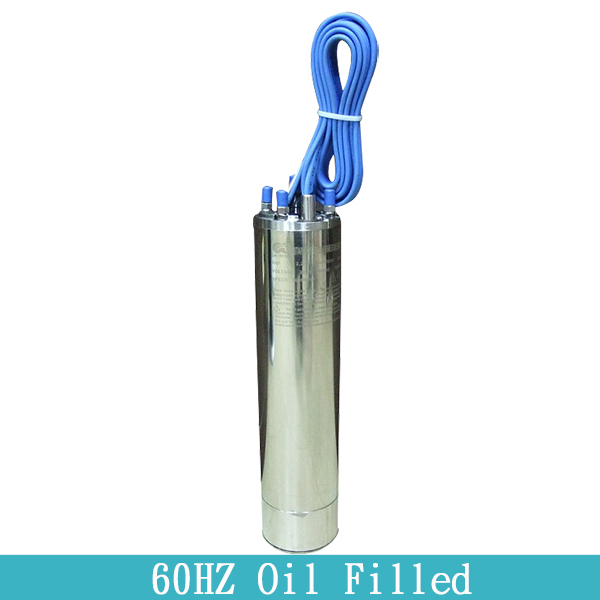

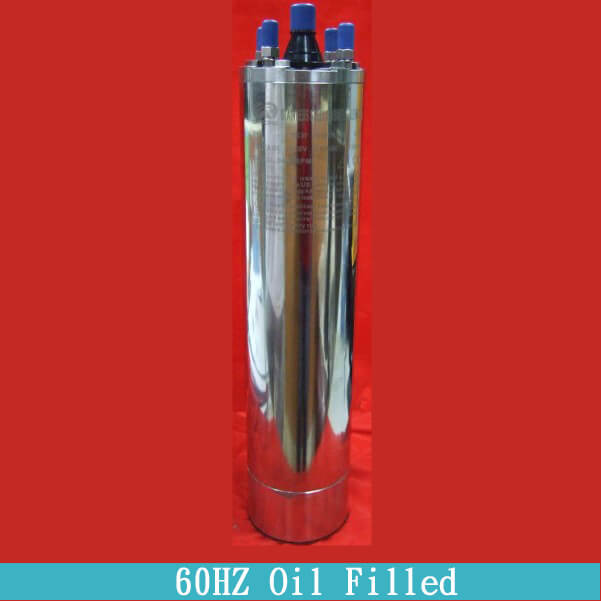

60HZ Single & Three Phase Oil Filled Submersible Motors
- 4"MENA flange
- 60HZ /50HZ Volts±10%
- Degree of protection:IP 68
- Rated ambient temperature:35℃
- Cooling flow:min.0.3 m/d
- Max starts:40/h
- Max operating depth:300m
- Food oil lubricated
- Diaphragm of pressures compensation
- Axial thrust supported form angular ball bearing
- Axial thrust:
from 0.5hp to 1.5hp-2000N;
from 2hp to 3ph-3000N
from 4hp to 5.5hp-4000N;
from 7.5hp to 10ph-5000N
- CE、ISO9001:2015
Oil Filled Submersible Motor Features
- Made in Taiwan
- CE & ISO 9001 certificate
- NSK bearing
- All stainless steel
- 2mm thick motor casing
- Food grade oil recognized by the USA

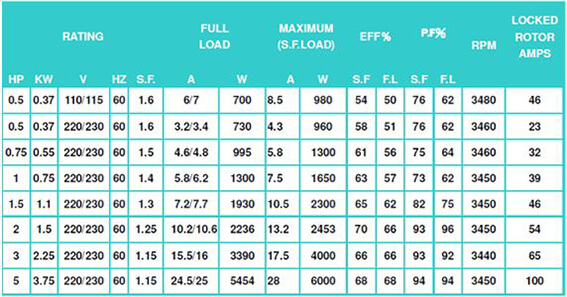

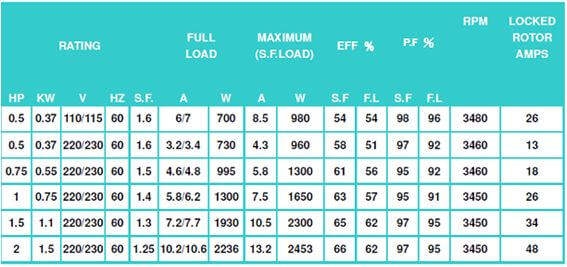

Single Phase Submersible Motors (60Hz)3450 rpm
2W-PSC
3W

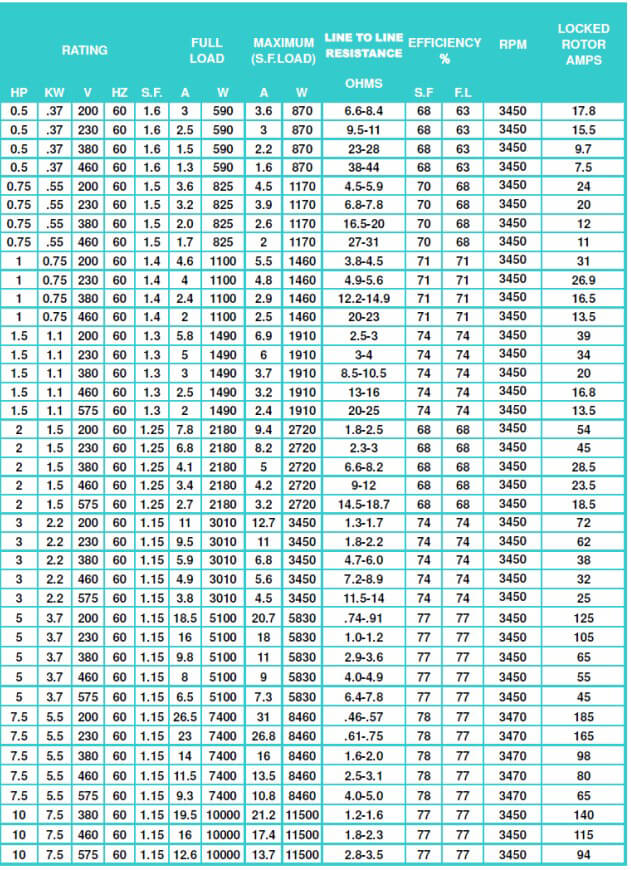

Three Phase Submersible Motors (60Hz) 3450 rpm

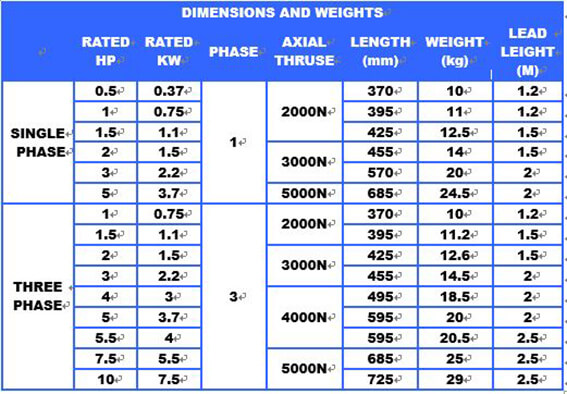

Single & Three Phase Submersible Motors Dimenions and Weights

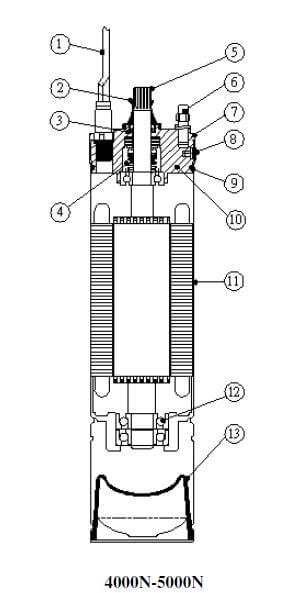

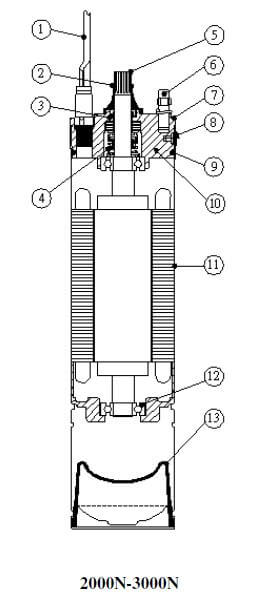

| POS | Part | Material/Designation |
|---|
| 1 |
Cable |
EPDM |
| 2 |
Sand Slinger |
NBR |
| 3 |
Lip Seal |
NBR |
| 4 |
Mechanical Seal |
Carbon-Graphite |
| 5 |
Motor Shaft |
AISI 304 |
| 6 |
Screws |
AISI 304 |
| 7 |
Covers |
AISI 304 |
| 8 |
Screws |
AISI 304 |
| 9 |
O-Ring |
NBR |
| 10 |
Brackets |
AISI 304 |
| 11 |
Outer Shell |
AISI 304 |
| 12 |
Ball Bearings |
AISI52100 |
| 13 |
Diaphragm |
NBR |
